Standard Pressure Housing 1 3/4" O.D.
Length: Pressure Housing - 80"
Pressure Rating: 28,000 PSI
Temperature: 125°C
Temperature (Heat Shield): 500°F for 5 hours
(Optional)

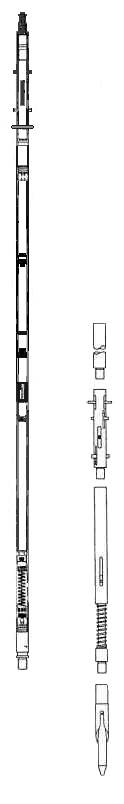

PROBE SPECIFICATION:
- Sensor:
- Three axis magnetometer system
- Three axis accelerometer system
- Dimensions: 1.375" O.D.
- 4 ft. Long
- Temperature 32° F (0° C) to 257° F ( 125°C)
- Data Storage: 1500 Survey Records
- Holdoff Time: Programmable
- Shot Interval: Programmable
- Probe Accuracy:
- Inclination: +/- 0.25° All Angles
- Azimuth: +/- 1.5° & Horizontal
- Tool Face: +/- 0.5°-@ Vertical
REPORT / FILE FORMATS:
- Survey Report
- Input Report
Printable Test Files
- Data Verification
- Tool Face Report (Coring)
Export to Spread Sheet
- Data Verification
- Tool Face Report
Batteries: C Cell Alkaline or Lithium
Running Gear: Same as WELNAV Photographic
